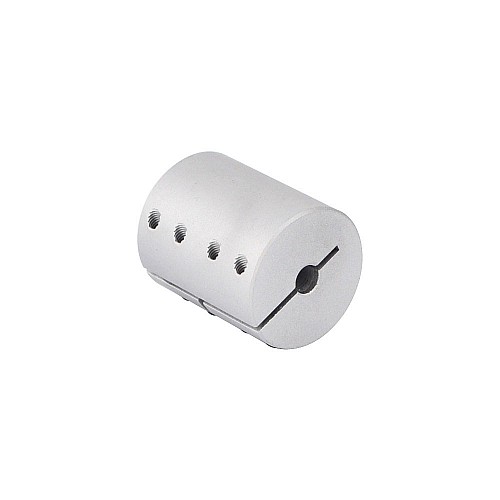

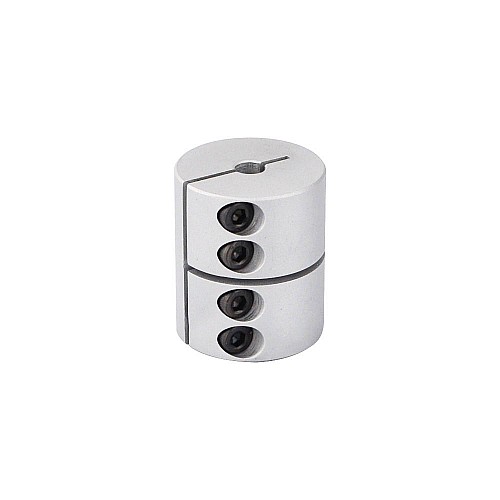

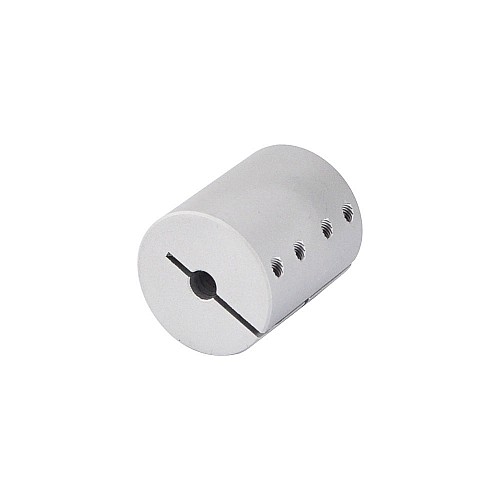

Acoplamiento rígido de 6mm - 6,35mm Acoplador de eje de motor paso a paso CNC de 25x30 mm
M$62.20
5 o más M$59.40
10 o más M$56.80
50 o más M$54.40
100 o más M$52.40
- Stock: Preordenar
- Model: ST-RC04
- Weight: 0.07kg
- Location: ISO
Este producto tiene una cantidad mínima de 10
| Model(Rigid) | d1(mm) | d2(mm) | D(mm) | L(mm) | t(mm) | L2(mm) | M(mm) | A(mm) | Rated Torque(Nm) | Max.Torque(Nm) | Max.Speed(rpm) | Moment of Inertia(kg.cm2) | Tightening Torque(N.M) |
| GX2025-5-5 | 5 | 5 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-7 | 3 |
| GX2025-5-6.35 | 5 | 6.35 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-8 | 3 |
| GX2025-5-8 | 5 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-9 | 3 |
| GX2025-6.35-8 | 6.35 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-10 | 3 |
| GX2025-8-10 | 8 | 10 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-11 | 3 |
| GX2025-8-8 | 8 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-12 | 3 |
